Do Other Wheels Fit a 2019–26 Silverado 1500? Spot Mismatches
Table of Contents
Will other wheels fit a Silverado 1500?

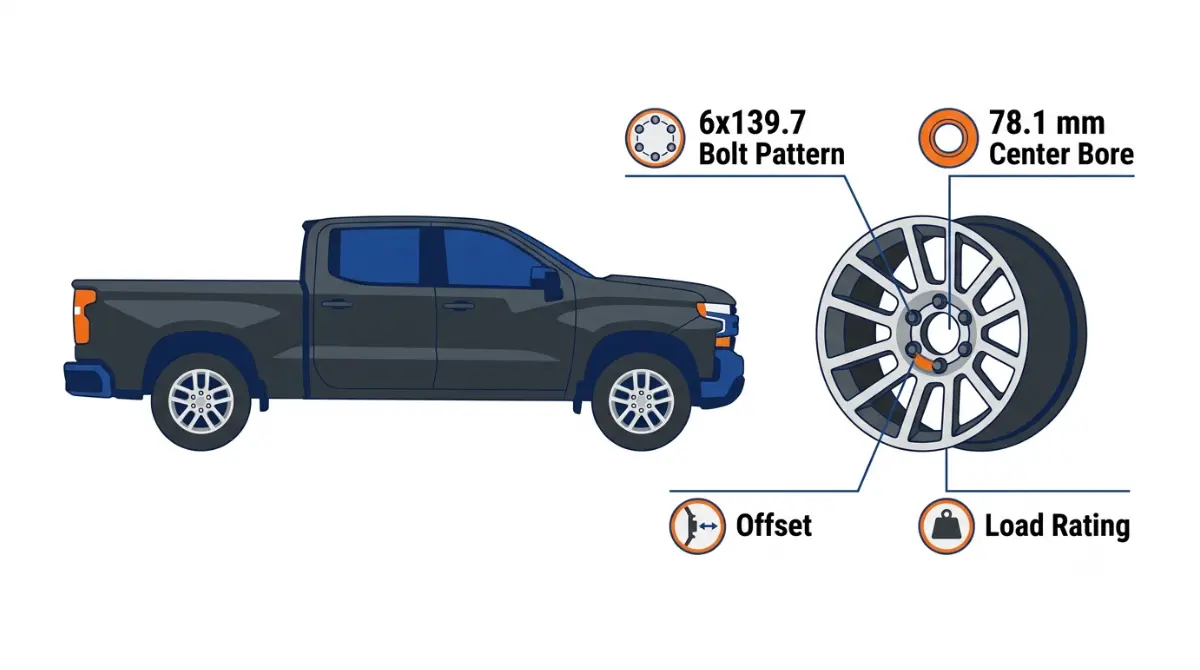

A wheel can match the lug count and still be wrong. On a Silverado 1500 (2019–2026, any cab, drivetrain or engine), fit takes four matches: bolt pattern, center bore, lug seat and offset, plus a load rating your axle allows. The 2027 truck and the 2500/3500 HD aren’t covered.
Quick answer by donor vehicle
| Donor wheel | Short answer |
|---|---|
| Tahoe, Sierra, Escalade | Pattern and bore reported to match |
| Ford F-150 | No: different bolt circle |
| Tacoma, Titan | Bore and stud thread differ |
| 2500/3500 HD | No: eight lugs |
Aggregator cross-checks, not manufacturer documents.
What counts as a fit
Pattern, bore, seat and offset must match the truck, and the wheel’s load rating must cover your axle rating.
ℹ️ Safety Note: Wheels carry the truck’s load and braking forces, so a mismatch is a safety problem, not a cosmetic one. The figures here are for comparison; confirm each against your own truck’s documents, and have a qualified shop do any fitting. This page is not installation guidance.
📍 Check your own vehicle first: Specifications vary by build date, package and market, and two trucks with the same badge can be built differently. Before you buy anything based on this page, confirm against the Tire and Loading Information label, the vehicle certification label, your owner’s manual and the build sheet. If your vehicle disagrees with this page, your vehicle is right.

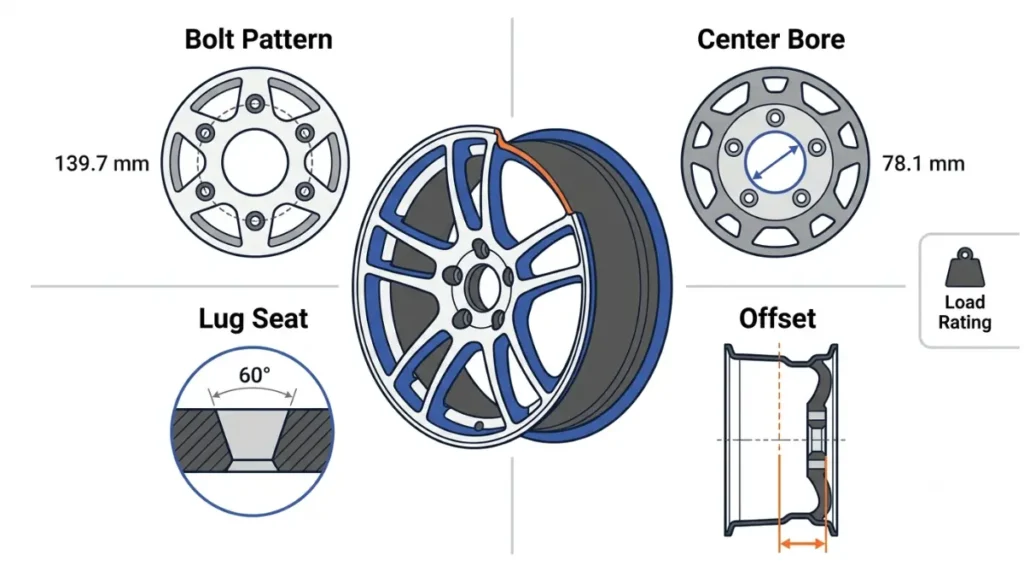

The four specs that decide whether a wheel fits
Each specification below is printed on the wheel or in your manual.
| Spec | Silverado 1500 | Applies To | Must match? |
|---|---|---|---|
| Bolt pattern | 6 lugs, 139.7 mm circle | 2019–2026, all cabs, 2WD/4WD | Yes |
| Stud thread | M14x1.5 | Same | Yes |
| Center bore | 78.1 mm | Same | Equal or larger |
| Lug seat | Not yet sourced | — | Yes |
Aggregator working values; the model-year figure is in the Chevrolet owner’s manual.
Bolt pattern and lug thread
Pattern is lug count plus circle; thread is stud size.
Hub bore and hub-centric rings
The bore slides over the hub: larger can fit, smaller cannot. A hub-centric ring needs a qualified shop’s confirmation.
Lug seat
The seat is the lug hole’s shape under the nut.
Offset and width
Cross-check both in the Bolt Pattern & Offset Finder; it’s no guarantee.

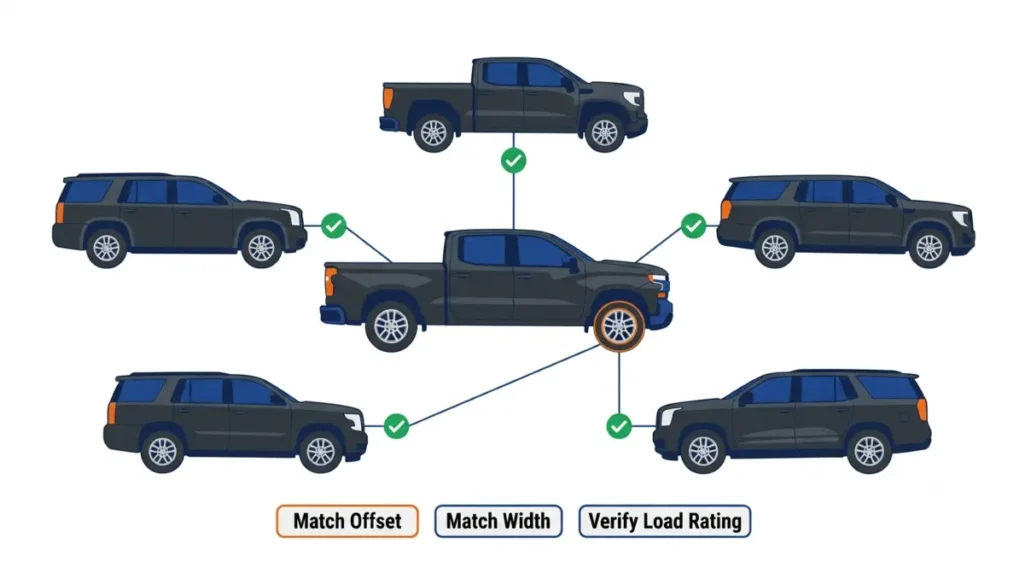

Will Tahoe, Sierra and Escalade wheels fit?
GM’s other full-size trucks are the likeliest match, so the unmatched specs are the trap.
Sierra 1500 and Silverado generations
Sierra 1500 wheels are reported to share the Silverado’s pattern and bore. A retailer’s year range is a listing, not a spec.
Tahoe, Suburban, Yukon, Escalade
| Donor | Reported to match | Still has to match |
|---|---|---|
| Sierra 1500 | 6×139.7 mm, 78.1 mm bore | Offset, width, load rating, brake clearance |
| Tahoe, Suburban, Yukon, Escalade | Same | Same |
Target 2019–2026 Silverado 1500; donor year and wheel option vary.
🚫 Fits But Shouldn’t: A sister-truck wheel can match pattern and bore, then carry a lower load rating than your axle needs or touch a caliper. The wheel’s marked rating and the GAWR on your certification label settle it.
Wheels that fit the studs but shouldn’t
Each wheel below can look like a match and fails on a named spec.
| Donor wheel | Looks like a match because | Proving spec | Verdict |
|---|---|---|---|
| Ford F-150 (2015–2026) | Six lugs | 135 vs 139.7 mm circle; 87.1 vs 78.1 mm bore | No |
| Toyota Tacoma, Nissan Titan | Tacoma shares the 139.7 mm circle | Tacoma: 106.1 mm bore, M12x1.5 studs; Titan unsourced | |
| “Fits Silverado” universal | Bolts on | Bore above 78.1 mm; seat | |
| 2500/3500 HD, 2001–2006 “1500HD” | Silverado name | Eight lugs, not six | No |
| Adapters or spacers | Bridge 6×135 to 6×139.7 | Adds a load-path part | Shop check only |
Silverado 1500, 2019–2026; aggregator cross-checks.
Ford F-150 wheels (6×135)
🚫 Fits But Shouldn’t: Ford’s 135 mm circle sits 4.7 mm inside the Silverado’s 139.7 mm. Ford’s side is in our F-150 lug nut size and thread pitch guide.
Toyota and Nissan wheels with a bigger bore
GM-hardware fit is unsourced.
Universal “fits Silverado” wheels
Ask for bore and seat in writing.
Silverado HD wheels and adapters
⚠️ Watch Out: An adapter adds a part to the wheel’s load path.
Offset, width and brake clearance on a stock Silverado
Factory wheel sizes by trim
| Wheel option | Size and offset | Applies To |
|---|---|---|
| 17-inch | 8Jx17, ET24 | 2019–2021 |
| 18-inch | 8.5Jx18, ET26 | 2019–2021 |
Aggregator values; 2022–2026 not retrieved.

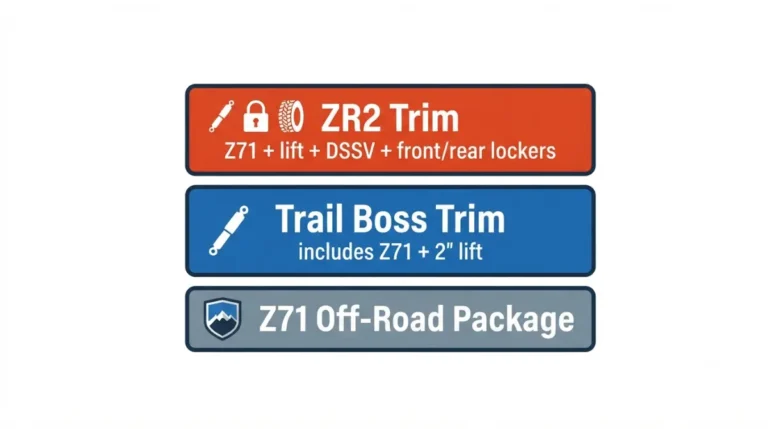

Z71, Trail Boss and ZR2 ship different factory tires: Z71 vs Trail Boss vs ZR2.
Offset and width
🔍 What This Spec Means: Offset is the millimeter distance from the wheel’s mounting face to its centerline. Change it and the wheel moves in or out.
Brake clearance
No clearance limits were retrieved.
✅ Do This: Read the wheel option code (RPO) off your build sheet, then ask the dealer parts desk whether your brake package clears the candidate wheel.
Load rating and torque: the limits you can’t guess
Two numbers decide whether a wheel is safe here, and a bolt pattern gives neither.
Wheel load rating vs axle rating
Your axle rating (GAWR) is on the certification label; SAE J2530 sets performance and marking rules for aftermarket wheels. Wheel size also moves tow ratings: the pillar ties its highest ratings to Max Trailering with 20-inch wheels, as our Silverado Max Trailering Package guide covers.
✅ Do This: Ask the shop, “What is this wheel’s marked load rating, and does it cover the GAWR on my certification label?”
Lug nut torque is printed, not guessed
📐 On the Spec Sheet: GM’s January 2020 lug nut torque service update, for certain 2020 Silverado 2500 HD trucks, warns that under-tightened nuts “may cause the wheel assembly to separate” and lists 140 lb-ft (190 N·m). HD only.
The 1500’s value is in your owner’s manual; no tightening procedure here.
Where to confirm every number on your own truck
A seller’s “it’ll fit” can be checked with four documents.
On the truck
| Number | Where it is printed |
|---|---|
| Factory tire size and pressure | Tire and Loading Information label |
| Axle rating (GAWR) | Vehicle certification label |
| Wheel option code (RPO) | Build sheet or window sticker |
| Wheel’s own specs | Markings on the wheel |
In the owner’s manual
📐 On the Spec Sheet: GM’s 2019 Silverado manual (third-party-hosted copy) puts Vehicle Load Limits on page 210 and Technical Data on 431. Pages differ by model year.
Silverado wheel fit questions answered
1. Will other wheels fit a Silverado 1500?
Only when bolt pattern, center bore, lug seat, offset and load rating all match your truck’s documents. Check your manual.
2. What is the Silverado 1500 bolt pattern?
2019–2026 Silverado 1500s are reported at six lugs on a 139.7 mm circle (6×5.5 inches). Check your manual.
3. Will Tahoe wheels fit a Silverado 1500?
Tahoe wheels are reported to share the pattern and 78.1 mm bore, but offset, width, load rating and clearance must still match. Check each.
4. Will F-150 wheels fit a Silverado?
No. Ford’s 135 mm bolt circle differs from the Silverado’s 139.7 mm circle, so the lugs won’t line up.
5. Will Tacoma or Titan wheels fit a Silverado?
Not as an approved fit: Tacoma bore and studs differ from the Silverado’s, and Titan studs are unconfirmed. Ask a shop.
6. Are Silverado 1500 and 2500HD wheels interchangeable?
No. HD trucks use eight lugs, not six, so their wheels can’t bolt to a 1500. Count your lugs.
7. Do Silverado wheels need hub-centric rings?
Only if a wheel’s bore is larger than the 78.1 mm hub, since a ring closes that gap. Have a shop confirm any ring.
8. Does offset have to match the factory wheel?
Factory offsets differ by wheel option, such as ET24 and ET26 on 2019–2021 trucks, so match your truck’s option. Check your build sheet.
9. Where do I find my Silverado’s stock wheel size?
Your build sheet shows the wheel option code; the Tire and Loading Information label shows factory tire size.
10. What is the Silverado 1500 lug nut torque?
It is printed in your owner’s manual; GM’s 140 lb-ft in the cited update covers 2020 Silverado 2500 HD only.
Fit means every condition at once: pattern, bore, seat, thread, offset and a load rating that covers your axle. Take the wheel’s marked specs to your owner’s manual, certification label and build sheet before you pay. If your truck disagrees with this page, your truck is right.
