Can a Tundra Tow a Travel Trailer? Your Exact Payload Limit
Tundra travel trailer limits come from payload. Every 2026 grade has a factory hitch, but tongue weight eats into the number on your door sticker.
Table of Contents
Can a Tundra tow a travel trailer? Yes, within payload
Yes. Toyota made a tow hitch and 7/4-pin trailer connector standard on every 2026 Tundra grade, including the base SR.
The harder question is how much trailer. For a camper, the first limit most buyers hit is payload capacity, not the tow rating.
Why the 12,000 lb figure misleads camper buyers
Toyota advertises towing of up to 12,000 lb, but only on specific configurations. A travel trailer presses hundreds of pounds down onto the hitch. That weight comes out of the same payload as your passengers and gear.
Who this answer is for
- Cross-shopping configurations: start with the payload table, then compare Tundra tow ratings by trim.
- Sizing a specific trailer: go straight to the step-by-step math.
- Already own a Tundra: the number that settles this is on your driver’s door jamb.
ℹ️ Safety Note: Tow rating, payload and gross combined weight are separate limits. Exceeding any one affects braking and stability, not just performance. The figures here are for planning; verify against your owner’s manual and door-jamb labels for your VIN before hitching anything.
📍 Check your own vehicle first: Two Tundras with the same badge can be built differently, and dealer-installed accessories reduce payload. Before you buy a truck or a trailer based on this page, confirm against your Tundra’s Tire and Loading Information placard on the driver’s door jamb and the towing section of the owner’s manual for your exact model. If your vehicle disagrees with this page, your vehicle is right.

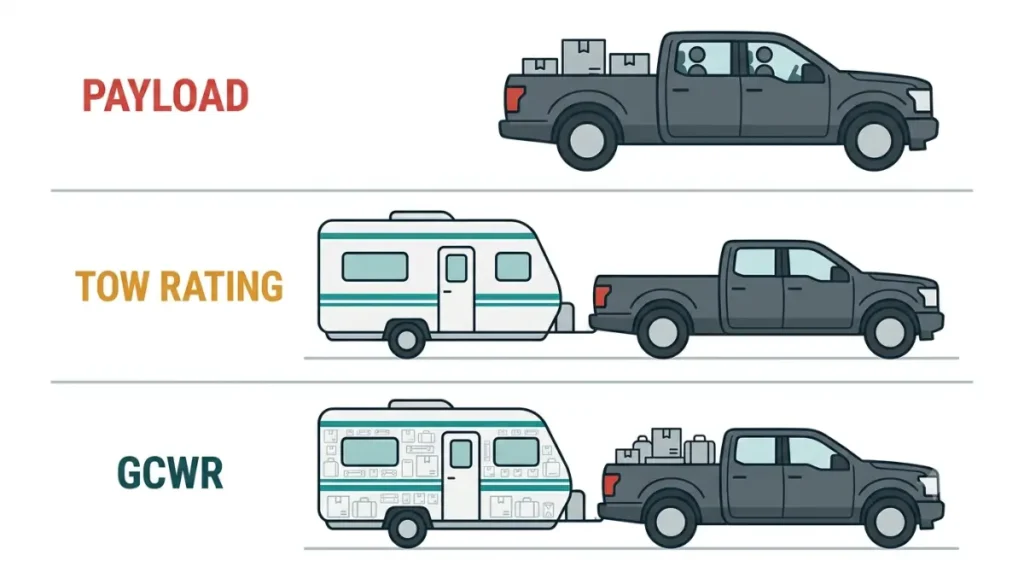

Tow rating, payload and tongue weight: which limit hits first
Four ratings decide whether a trailer matches a truck, and each one measures something different.
What payload counts
Payload is everything the truck carries: driver, passengers, cab and bed cargo, accessories, and the trailer’s tongue weight. Toyota calculates it as GVWR (gross vehicle weight rating) minus curb weight. GCWR (gross combined weight rating) caps the truck, the trailer and everything in both.
🔍 What This Spec Means: Your door-placard payload is the most weight you can add to the truck as built. Every pound of family, cooler, generator and hitch hardware leaves less room for the trailer’s tongue.

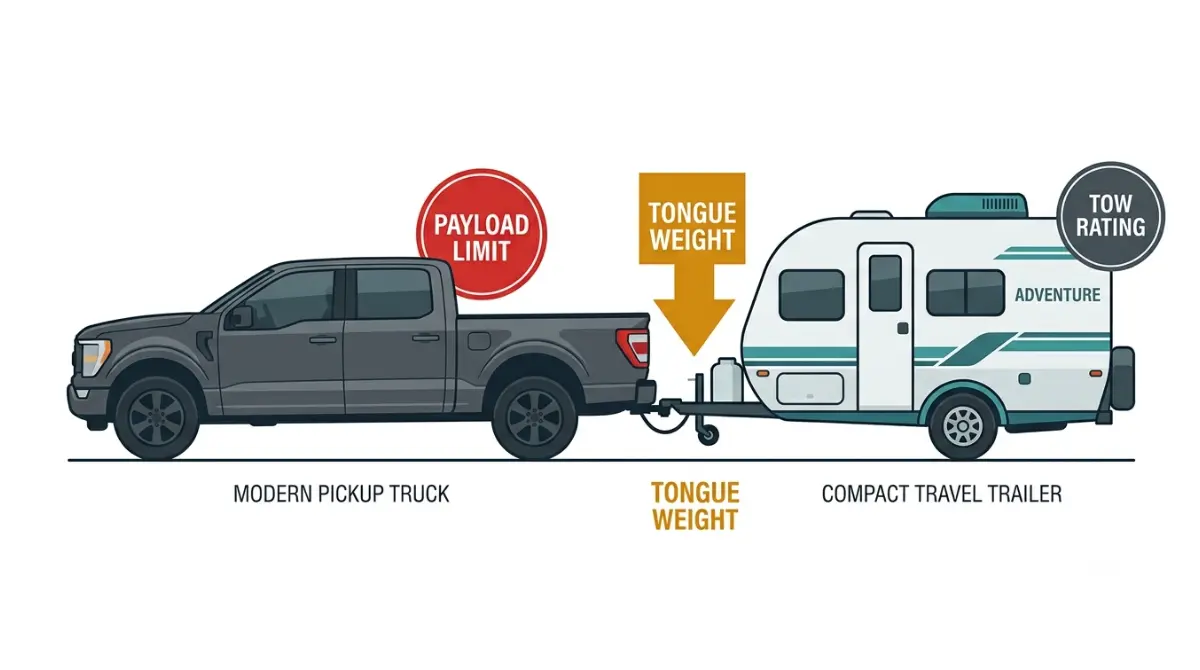

How much of a travel trailer sits on the hitch
Tongue weight is the downward load the trailer coupler puts on the hitch ball. Manufacturer trailering guidance commonly targets 10–15% of loaded trailer weight for conventional ball-hitch trailers.
What SAE J2807 does and doesn’t promise
SAE J2807, the towing standard, sets minimum performance tests at GCWR and a method for calculating a trailer weight rating. Toyota says it has rated its towing-equipped lineup to J2807 since 2011. That rating describes truck performance with a standard test trailer; it says nothing about the people and gear in your cab.
Tundra payload by configuration and the trailer it supports
Your payload sets the heaviest travel trailer whose tongue you can carry, often before the tow rating matters.
| Door-sticker payload | Applies To | Left after 500 lb people and gear | Loaded trailer at 13–15% tongue | What It Includes |
|---|---|---|---|---|
| 1,400 lb | 2022–2026 Tundra, any cab, bed or drive, placard at this figure | 900 lb | about 6,000–6,900 lb | Occupants, cab and bed cargo, tongue weight |
| 1,600 lb | Same | 1,100 lb | about 7,300–8,400 lb | Same |
| 1,800 lb | Same | 1,300 lb | about 8,600–10,000 lb | Same |
Calculated by Feature & Fit from the payload definition above, rounded down. Sticker payloads are illustrative bands, not Toyota figures for any trim. The 500 lb load is an example; subtract your hitch hardware too. If the result exceeds your configuration’s tow rating or GCWR, the lower limit governs.
Gas i-FORCE configurations
On gas trucks, cab style, bed length and 4×2 versus 4×4 all change curb weight, so payload belongs to the exact combination. Find yours in our Tundra payload capacity by trim breakdown or the full Tundra configuration matrix.
i-FORCE MAX hybrid configurations
Hybrid configurations carry their own payload figures. Read the number for the exact grade, cab, bed and drive. A band in this table is only as accurate as the sticker you start from.
How big a travel trailer can your Tundra really pull?
Run four numbers in order; the lowest result is your limit.
Step-by-step payload math
- Read the payload line on your door placard: the combined weight of occupants and cargo the truck should never exceed.
- Subtract everyone riding, everything in the cab and bed, and your hitch hardware weight.
- Divide what’s left by 0.15 for a conservative loaded-trailer figure; 0.13 gives the upper end.
- Compare the result with your configuration’s tow rating and GCWR in the owner’s manual, and use the lowest.
A worked example
Take an illustrative placard of 1,600 lb. A family of four plus gear at 700 lb and 100 lb of hitch hardware leave an 800 lb tongue budget. That supports a loaded trailer of roughly 5,300–6,100 lb, whatever the truck’s tow rating says.
🚫 Fits But Shouldn’t: A trailer whose brochure hitch weight fits your payload can overload it once packed, because cargo stowed ahead of the axles raises tongue weight. The number that settles it is the trailer’s GVWR times your tongue percentage, not its dry hitch weight.
Why more truck can mean less trailer
Payload shrinks as curb weight grows, because Toyota calculates payload as GVWR minus curb weight.
Gas vs i-FORCE MAX for camper towing
Horsepower and torque don’t add payload. For camper duty, compare the published payload for each exact gas and hybrid configuration first, then the tow rating. Our hybrid vs gas Tundra towing comparison lines them up.
What we know about 2027
Toyota has introduced an updated 2027 Tundra, keeping both the gas twin-turbo V6 and the i-FORCE MAX hybrid. Toyota had not published 2027 tow or payload ratings in the sources we checked. Don’t assume 2026 figures carry over.
What Toyota requires above 5,000 pounds
Toyota sets hitch requirements once trailers pass a specific weight.
Weight-distributing hitch threshold
Toyota states that a weight-distributing hitch with sufficient capacity is required when gross trailer weight exceeds 5,000 lb (Toyota’s 2026 Tundra specifications). Follow both the hitch maker’s instructions and the Tundra owner’s manual.
Factory hitch and wiring by model year
For 2026, Toyota made the tow hitch and 7/4-pin connector standard on every grade, and the 10-speed automatic includes TOW/HAUL modes (Toyota’s 2026 Tundra announcement). Toyota described the hitch as newly standard, so a 2022–2025 SR may lack one; check the window sticker or build sheet.
✅ Do This: Before signing, ask the dealer for two things on that exact VIN: the payload on its Tire and Loading placard, and the trailer weight rating and GCWR for its model code in the owner’s manual. If you add a weight-distributing hitch, have a qualified installer confirm its rated tongue capacity covers your trailer’s GVWR-based tongue load.
Dry weight, door stickers and other camper-buying traps
Most Tundra-and-camper mismatches start with comparing the wrong two numbers.
Dry weight isn’t what you’ll tow
A brochure dry weight is the trailer empty. Plan around the trailer’s GVWR, the most it’s rated to weigh loaded, because that’s what your hitch will eventually carry.
Read these two stickers before you sign
- Tire and Loading Information placard (driver’s door jamb): the combined occupant-and-cargo limit, which is your payload.
- Certification label (driver’s door edge or pillar): GVWR and front and rear axle ratings.
NHTSA’s guidance on the loading placard explains that this capacity can’t exceed GVWR minus the vehicle’s unloaded weight. A dealer must replace the placard if added equipment lowers it, so read it on the actual truck.
Tundra travel trailer FAQ
1. How much can a Tundra tow?
Toyota advertises Tundra towing of up to 12,000 lb on specific configurations only. Most builds are rated lower, so check your exact model code. Confirm in your owner’s manual.
2. Does a Tundra need a weight distribution hitch?
Toyota requires a Tundra weight-distributing hitch with sufficient capacity once gross trailer weight exceeds 5,000 lb. Confirm in your owner’s manual.
3. What is Tundra payload capacity?
Tundra payload capacity is GVWR minus curb weight, so it changes with cab, bed, drive and equipment. Confirm on your door-jamb placard.
4. Can a Tundra pull a 30-foot camper?
Length doesn’t decide whether a Tundra can pull a camper. Loaded weight and tongue weight measured against your payload, tow rating and GCWR do. Confirm on your placard.
5. Is a hybrid or gas Tundra better for a camper?
For camper towing, compare the published payload of the exact hybrid and gas Tundra configurations, since payload, not torque, limits trailer size. Confirm on the placard.
6. What is tongue weight on a Tundra?
Tongue weight is the trailer’s downward load on the Tundra’s hitch, commonly 10–15% of loaded weight for conventional travel trailers. Confirm in your owner’s manual.
7. Dry weight vs GVWR — which should I use?
For a Tundra travel trailer, plan around the trailer’s GVWR, its maximum loaded weight. Dry weight describes the trailer empty. Check the trailer’s weight label.
8. Where do I find my Tundra’s payload?
Your Tundra’s payload is the occupant-and-cargo limit printed on the Tire and Loading Information placard on the driver’s door jamb.
9. Does the 2026 Tundra come with a tow hitch?
Yes. Toyota made a tow hitch and 7/4-pin connector standard on every 2026 Tundra grade, including the base SR.
10. What is the 2027 Tundra towing capacity?
Toyota had not published 2027 Tundra towing capacity or payload ratings in the sources we checked. Don’t assume 2026 figures carry over.
Run your sticker number before you shop trailers
A Tundra can tow a travel trailer. The trailer size it can handle comes from your truck’s payload, its tongue budget and the lowest of its three ratings. Read the door placard on the exact truck, do the math for your trailer’s GVWR, and only then compare floor plans.
