What an F-150 hybrid can actually tow

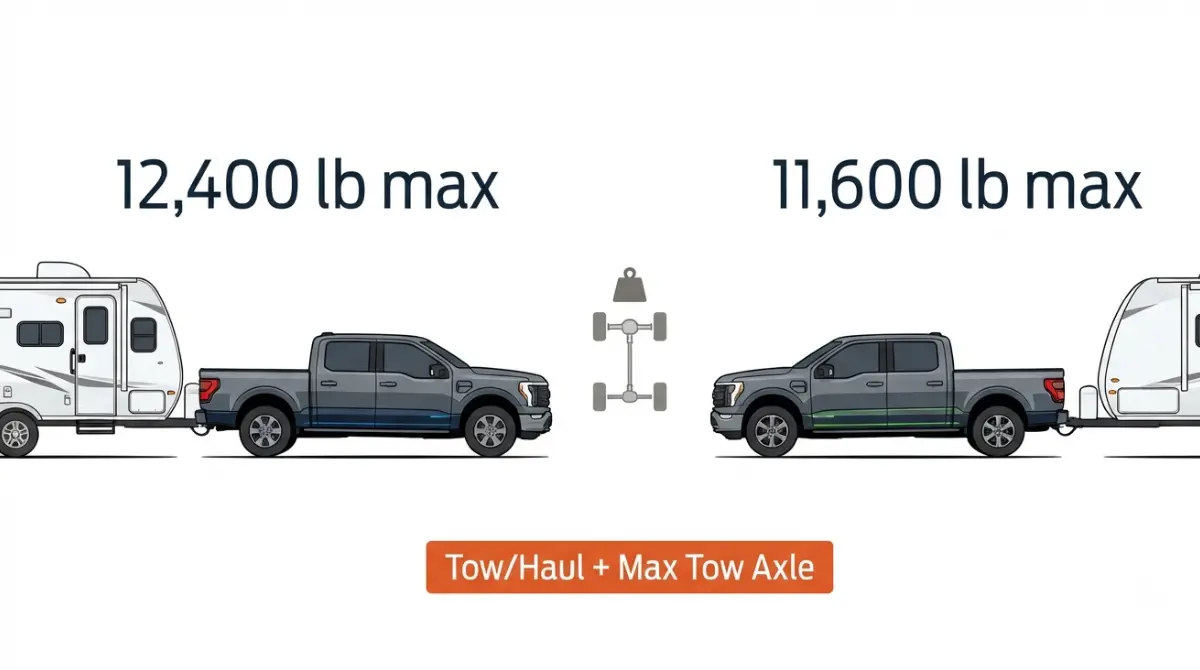

The 2026 F-150 with the 3.5L PowerBoost full hybrid V6 is rated to pull 12,400 lb in 4×2 and 11,600 lb in 4×4. The higher number belongs to the two-wheel-drive truck, which is the reverse of what most buyers assume. Both figures require the Tow/Haul Package (53T) and the optional Max Tow Axle.
Where you go next depends on what you are doing. Sizing a hybrid for a trailer you already own — the table below gives your row. Cross-shopping the hybrid against the 3.5L EcoBoost, or looking at a used 2021–2025 truck — skip to the year-by-year section. Standing on a lot with one specific truck in front of you — the last section names the three labels to read.
ℹ️ Safety Note: Tow ratings depend on your exact build, and exceeding one affects braking and stability, not just how hard the truck works. The figures here are for comparison; verify against Ford’s towing guide and the labels on your own VIN before hitching anything.
📍 Check your own vehicle first: Specifications vary by build date, package and market, and two trucks with the same badge can be built differently. Before you buy anything based on this page, confirm against the Safety Compliance Certification Label on the driver’s door lock facing, the tire and loading information placard, and the window sticker or VIN build sheet. If your vehicle disagrees with this page, your vehicle is right.

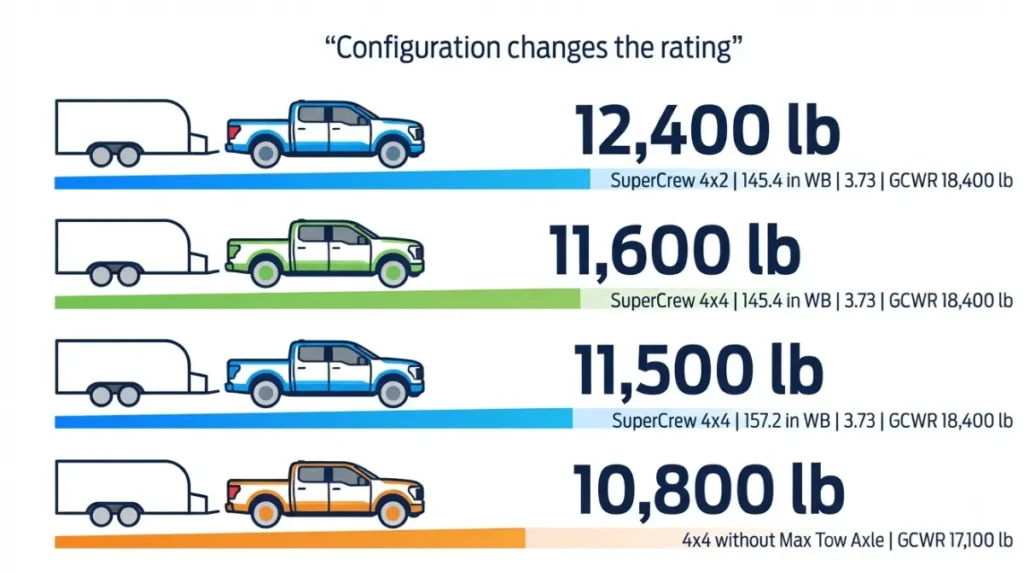

F-150 hybrid tow ratings by drivetrain, wheelbase and axle
The maximum loaded trailer weight for a hybrid F-150 moves 1,600 lb across four configurations of the same engine.
| Configuration | Axle / GCWR | Max loaded trailer weight | What It Includes | Applies To |
|---|---|---|---|---|
| SuperCrew 4×2, 145.4″ WB | 3.73 / 18,400 lb | 12,400 lb | Tow/Haul Package (53T) + Max Tow Axle | 2026 MY hybrid; 4×2 available spring 2026 |
| SuperCrew 4×4, 145.4″ WB | 3.73 / 18,400 lb | 11,600 lb | Tow/Haul Package (53T) + Max Tow Axle | 2026 MY hybrid |
| SuperCrew 4×4, 157.2″ WB | 3.73 / 18,400 lb | 11,500 lb | Tow/Haul Package (53T) + Max Tow Axle | 2026 MY hybrid |
| SuperCrew 4×4, either WB | 3.73 / 17,100 lb | 10,800 lb | Standard tow content, no Max Tow Axle | 2026 MY hybrid |
Source: Ford’s 2026 F-150 towing guide, F-150 Hybrid conventional towing selector, revised 10 March 2026. Ratings calculated with the SAE J2807 method. The hybrid is SuperCrew-only — there is no regular cab or SuperCab row. Figures for the 3.55 axle are omitted here pending column verification against the printed table.
Why the 4×2 carries the higher figure
Four-wheel-drive hardware adds weight the truck has to carry before it pulls anything, and that comes off the trailer rating. It is the same pattern that sets the difference between 4×4 and 4×2 tow ratings across the F-150 line.
What the 17,100 lb row costs you
Without the Max Tow Axle, a 4×4 hybrid tops out at 10,800 lb regardless of wheelbase — 800 lb below the equipped figure. To find the row for a build you are configuring, the Towing Capacity Lookup takes the same variables, and the full F-150 configuration matrix sets these rows beside every other engine.
🚫 Fits But Shouldn’t: A 12,000 lb trailer behind a 4×4 PowerBoost. It will couple, the receiver will accept the ball mount, and nothing will physically stop you. The 4×4’s rating is 11,600 lb at its best configuration — the 12,400 lb figure is a 4×2 number and does not transfer.
What the Tow/Haul Package and Max Tow Axle actually change
Neither top figure is available on a hybrid ordered without both boxes ticked.
Tow/Haul Package (53T)
The package brings the integrated trailer brake controller, an electronic locking rear differential, and the upgraded rear axle ratio — which is already standard on PowerBoost trucks.

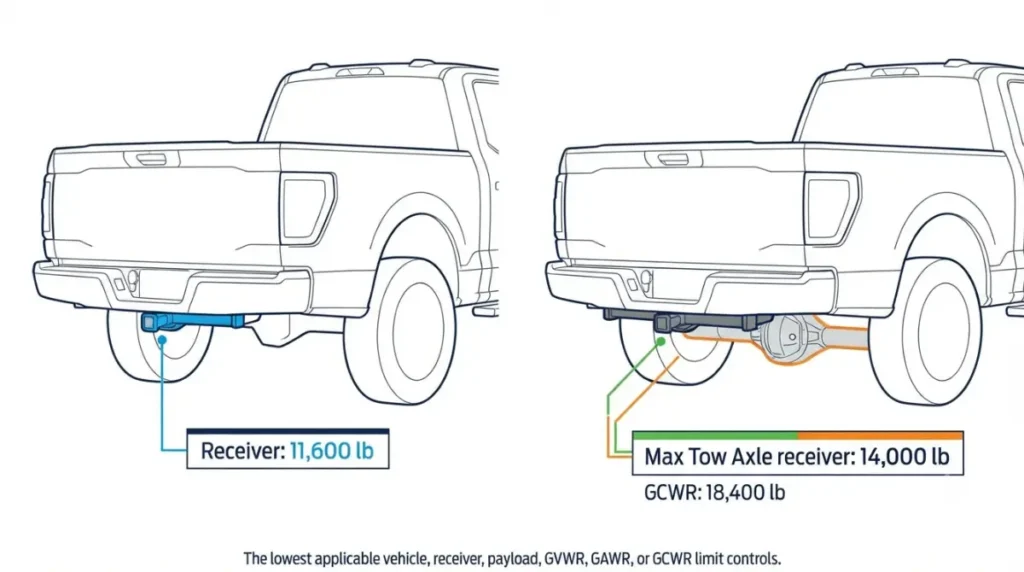

Max Tow Axle, and the receiver that rides with it
This is the option most buyers miss, because it changes two things at once. It lifts GCWR to 18,400 lb, and it swaps the standard 2″ hitch receiver for a reinforced one.
📐 On the Spec Sheet: Ford’s 2026 towing guide lists a standard 2″ receiver rated at 11,600 lb, and states that the Max Tow Axle includes a 2″ reinforced receiver rated at 14,000 lb. Weight-carrying capacity is 5,000 lb trailer and 500 lb tongue; weight-distributing capacity is 13,500 lb and 1,400 lb, and the weight-distributing figure itself requires the Tow/Haul Package and Max Tow Axle.
A standard receiver is therefore rated below the 12,400 lb headline. That relationship between receiver rating and tow rating is what makes these two option codes one decision, not two. All of these ratings are set under the SAE J2807 tow-rating standard .
The 10,800 lb threshold that only applies to the hybrid
Ford sets a lower equipment threshold for the hybrid than for the gas trucks, and it catches people at very ordinary trailer weights.
Hybrid versus gas
📐 On the Spec Sheet: Under Required Equipment, Ford’s 2026 guide states that an F-150 Hybrid towing trailers over 10,800 lb requires the Tow/Haul Package (53T) and optional Max Tow Axle, while a gas F-150 crosses that requirement over 11,600 lb. Ford adds that the New Vehicle Limited Warranty may be voided if you tow without them.
When weight distribution stops being optional
The same guide caps any F-150 at 5,000 lb of trailer weight without a weight-distribution system. Every four-figure number on this page is a weight-distributing rating.
⚠️ Watch Out: An 11,000 lb trailer sits under the 11,600 lb gas threshold but over the 10,800 lb hybrid one. Two trucks, same trailer, different equipment requirement — and on the hybrid, towing it without the required equipment puts you outside Ford’s stated warranty terms. Confirm the option codes on the window sticker before you commit to the trailer.
Why payload, not the tow rating, usually stops you first
Payload is the number that ends most hybrid towing plans, and it is not the number on the brochure.
What 10% tongue load means in pounds
Ford specifies tongue load at 10% of total loaded trailer weight. On a 12,400 lb trailer that is roughly 1,240 lb pressing down on the truck.
Where the payload figure comes from
Ford lists 1,740 lb as the hybrid’s available maximum payload — and states plainly that payload varies by accessories and configuration, with the doorjamb label as the figure for a specific vehicle. Your truck’s label figure will be lower than 1,740 lb, often by several hundred pounds on a higher trim.
🔍 What This Spec Means: Subtract 1,240 lb of tongue load from a best-case 1,740 lb and about 500 lb remains — for passengers, fuel you added, hitch hardware, and anything in the bed. Two adults and a full cooler can spend that before you load a single thing. This is why payload and tongue weight decide the trailer more often than the tow rating does.
Ford’s own note is the binding one: tongue load plus passengers and cargo must not push the truck past its rear GAWR or GVWR, both printed on the Safety Compliance Certification Label.
How the hybrid’s tow rating changed from 2021 to 2026
A figure from one model year does not transfer to another, and the hybrid has moved more than most.
2021 to 2023
Ford certified the PowerBoost at a maximum 12,700 lb at launch, on a SuperCrew 4×2 with the Max Trailer Tow Package.
2026, and the return of the 4×2
Ford’s 2026 guide footnotes the hybrid’s 4×2 columns “Available spring 2026.” Pages published before that date describe the PowerBoost as four-wheel-drive only, which was true when they were written and is why so many of them still say 11,600 lb is the ceiling.
Where to check the real numbers on the truck
Three labels settle it, and all three are readable in under two minutes.
- Safety Compliance Certification Label — driver’s door lock facing or latch post pillar. Carries GVWR, GAWR, and a two-digit AXLE code: L6 is the 3.73 electronic-locking axle, L9 the 3.55. Ford lists no non-locking 3.73.
- Tire and loading information placard — the payload figure for that specific truck.
- Window sticker or VIN build sheet — whether Tow/Haul Package 53T and the Max Tow Axle are actually on it.
✅ Do This: If the labels are missing or don’t match the build, ask a Ford dealership parts or service specialist to pull the build sheet by VIN, and ask by name for two things: the two-digit axle code, and whether option code 53T is present.
F-150 hybrid towing: common questions
1. How much can a 2026 F-150 hybrid tow?
Up to 12,400 lb in 4×2 and 11,600 lb in 4×4, both with the Tow/Haul Package and Max Tow Axle. Confirm on your door label.
2. Is the F-150 hybrid 4×2 or 4×4?
Both, as of spring 2026. The 4×2 SuperCrew carries the higher f150 hybrid towing capacity at 12,400 lb.
3. Which cab does the PowerBoost come in?
SuperCrew only. Ford’s 2026 towing guide lists no regular cab or SuperCab hybrid row.
4. Do I need the Max Tow Axle to tow 11,000 lb?
Yes. Ford requires the Tow/Haul Package and Max Tow Axle on any hybrid pulling over 10,800 lb. Verify the codes on the window sticker.
5. Why is the hybrid’s threshold lower than the gas trucks’?
Ford sets the hybrid requirement above 10,800 lb and the gas requirement above 11,600 lb in the same document.
6. What is the F-150 hybrid’s payload?
Ford lists 1,740 lb as the available maximum. Your truck’s figure is on the tire and loading placard and will be lower.
7. How much tongue weight will a 12,400 lb trailer put on the truck?
About 1,240 lb, at Ford’s 10% guideline — most of a best-case payload. Check your placard before committing.
8. Do I need a weight-distribution hitch?
Yes, above 5,000 lb of trailer weight on any F-150. Every four-figure rating here assumes one.
9. What tow rating does the standard receiver carry?
11,600 lb. The reinforced 14,000 lb receiver comes with the Max Tow Axle. Read the label on the receiver itself.
10. Did the hybrid’s rating change since 2021?
Yes — the 2026 figures differ from the 2021 rating, so use the towing guide for your truck’s model year.
Before you order or sign
The two headline figures are drivetrain-specific and both sit behind the same pair of option codes. Nothing on this page replaces the labels on the truck you are actually buying. Read the door label for the axle code and GVWR, the placard for payload, and the window sticker for 53T — then match your trailer to that, not to a brochure number.
