Exact F-150 vs Silverado vs Ram towing by cab and drivetrain

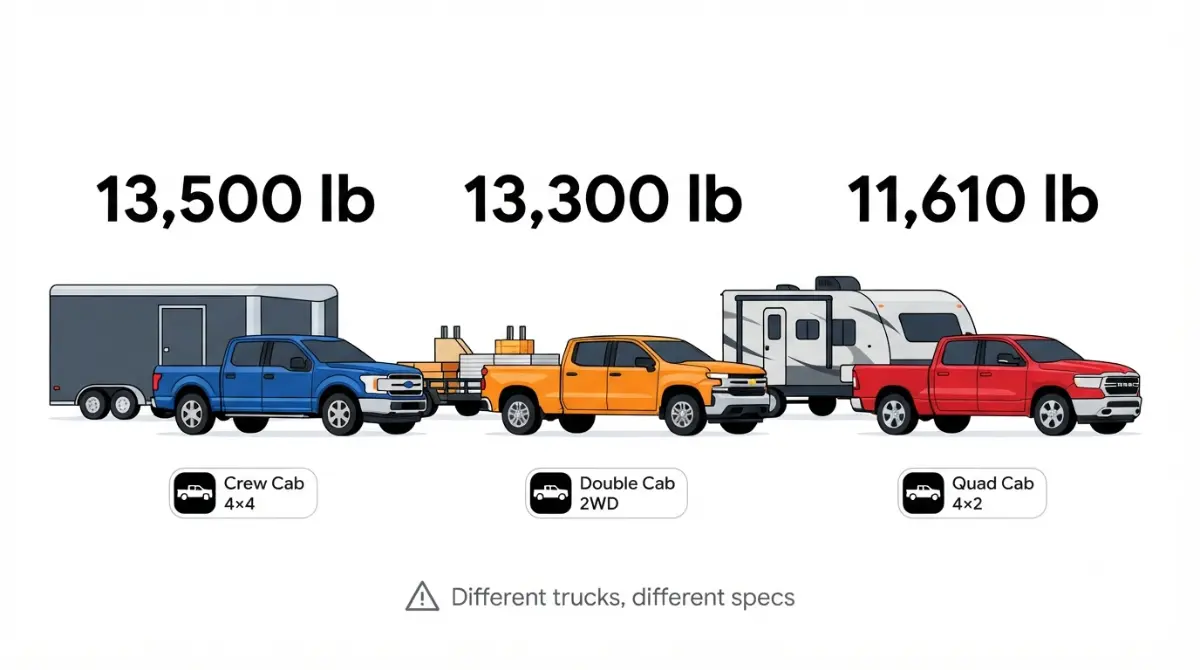

Three numbers dominate this comparison: 13,500 lb, 13,300 lb and 11,610 lb. None of them describes a truck you can park alongside the other two.

Ford’s figure is a SuperCrew 4×4. Chevrolet’s is a Double Cab, 2WD. Ram’s is a Quad Cab 4×2.

Where you are decides where to start. Cross-shopping all three, go to the like-for-like table in Section 3. Sizing for a specific trailer, the tongue-weight section is the one that matters. Coming up from a smaller truck, read that section before you pick a brand at all.

Everything on this page is 2026 model year, taken from each manufacturer’s published towing documentation. For the F-150 on its own, the full F-150 configuration matrix goes deeper.

ℹ️ Safety Note: Tow ratings depend on your exact build, and exceeding one affects braking and stability, not just how hard the truck works. Every figure here is for comparison between configurations. Verify against the towing guide and the door-jamb label for your specific VIN before hitching anything.

📍 Check your own vehicle first: Specifications vary by build date, package and market, and two trucks with the same badge can be built differently. Before you buy anything based on this page, confirm against the door-jamb certification or trailering label and the window sticker for that specific truck. If your vehicle disagrees with this page, your vehicle is right.

The three headline numbers are three different trucks

All three makers rate these trucks under the same test standard, SAE J2807, so the figures are measured comparably. The trucks behind them are not comparable at all.

Sources: 2026 Ford F-150 Towing Guide; 2026 Chevrolet Trailering Guide, Silverado 1500 conventional charts; 2026 Ram 1500 Payload & Towing chart. Ram’s published matrix covers Tradesman.

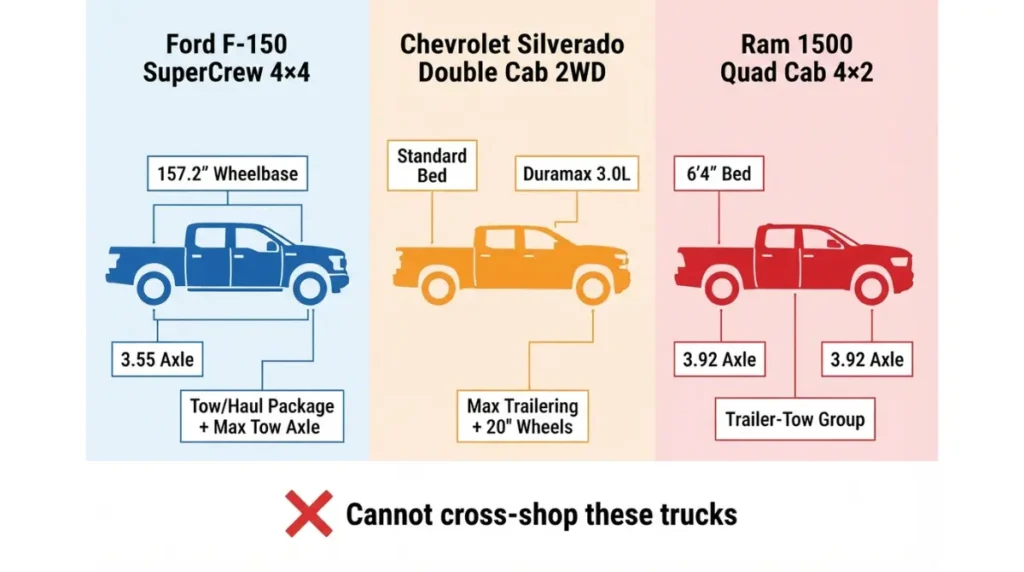

Ford’s 13,500 lb needs a crew cab, four-wheel drive and the long wheelbase. Chevrolet’s 13,300 lb needs the opposite cab and no four-wheel drive at all. Ram’s 11,610 lb needs a Quad Cab and two-wheel drive.

A buyer who wants a crew cab with four-wheel drive — most of this market — cannot order any of those three trucks.

🔍 What This Spec Means: GCWR is the ceiling on the truck and trailer weighed together, and it is what actually sets these figures. Ford’s top row is 19,400 lb. Chevrolet’s is 19,000–19,100 lb. Ram’s is 17,000 lb, which is most of why its number lands lower.

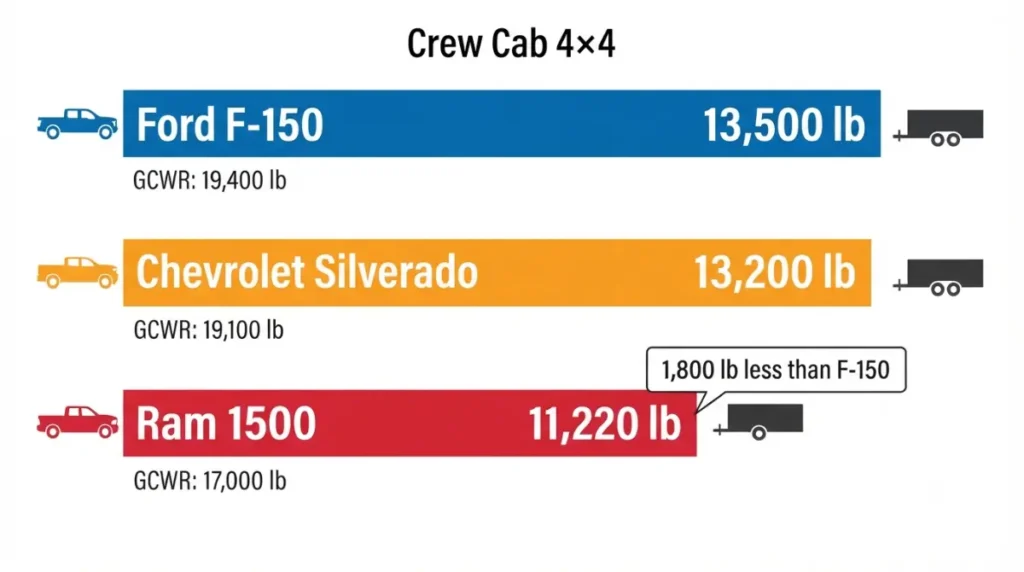

Same truck, same table: Crew Cab 4×4 towing compared

Set all three to a crew cab with four-wheel drive and each maker’s maximum-tow equipment, and the order changes.

Sources: Ford’s 2026 F-150 towing guide, Chevrolet’s 2026 trailering guide (Silverado 1500 conventional charts) and Ram’s published 2026 payload and towing capacities. Ram does not publish this matrix above Tradesman.

The F-150 holds its headline figure into this configuration. The Silverado loses 100–400 lb. The Ram loses roughly 400 lb against its own headline and sits about 1,800 lb below the other two.

Bed length matters on two of the three. The F-150 gives up 400 lb moving to the 5.5-foot box; the Silverado gives up 100 lb on the Duramax. You can resolve one specific build with the Towing Capacity Lookup.

What actually moves the number: axle, wheels and package

Each maker gates its top rating behind a different order-sheet choice, and only one of them is the engine.

Ram: the axle ratio. The Hurricane standard-output rates roughly 8,100–8,510 lb with a 3.21 or 3.55 axle and 11,200–11,610 lb with the 3.92. Same engine, about 3,100 lb apart.

Chevrolet: the wheels. A Crew Cab short-bed 4×4 with the Duramax and the Max Trailering Package rates 11,800 lb on 18-inch wheels and 13,000 lb on 20-inch wheels. The GCWR moves with the wheel size, from 17,800 lb to 19,000 lb.

Ford: the package. The engine alone does not get you there — what the Max Tow Axle actually changes is the receiver and the rear axle together.

📐 On the Spec Sheet: Ford’s 2026 F-150 towing guide lists a standard 2-inch hitch receiver rated at 11,600 lb, with the Max Tow Axle adding a reinforced 2-inch receiver rated at 14,000 lb. It also states that for gas trailers over 11,600 lb the Tow/Haul Package (53T) and optional Max Tow Axle are required, and that the New Vehicle Limited Warranty may be voided if you tow without them.

✅ Do This: Ask the dealer to show you the window sticker option codes before you commit — 53T plus Max Tow Axle on a Ford, Max Trailering Package plus wheel size on a Chevrolet, 3.92 axle plus Trailer-Tow Group on a Ram. A truck with the right engine and the wrong axle is a different rating.

Why none of these trucks tows its maximum with people in it

Tongue weight is the part of the trailer that presses down on the hitch, and it counts against payload, not against the tow rating.

Sources: the three manufacturer documents cited above.

⚠️ Watch Out: Ram calculates tongue weight at 10% and caps the Class IV receiver at 1,100 lb — both stated in the same footnote. Ten percent of the 11,610 lb headline figure is 1,161 lb. The headline trailer and the receiver’s tongue limit do not reconcile, which is the sort of thing worth resolving with a dealer before you order, not after.

Ford states plainly that horsepower, torque, payload and towing may not be achieved at once. Ram states that trailer weight and payload ratings are mutually exclusive. Neither is fine print.

Run your own figures with the Payload & Tongue Weight Calculator, or see how tongue weight eats into payload on the F-150 specifically.

Three things the tow charts don’t tell you plainly

Fifth-wheel ratings go down, not up. On heavy-duty trucks the gooseneck figure beats the conventional one. On these half-tons it does not.

🚫 Fits But Shouldn’t: A 2026 Silverado 1500 Crew Cab standard-bed 4×4 with the Duramax, Max Trailering Package and 20-inch wheels is rated 12,900 lb conventional and 8,100 lb gooseneck or fifth-wheel. A 2026 F-150 SuperCrew 4×4 on the 157.2-inch wheelbase drops from 13,500 lb conventional to 9,000 lb fifth-wheel. The hitch type changes the rating by thousands of pounds, and the bed-mounted hitch physically fits either way.

Ford’s warranty condition. Above 11,600 lb on gas models and 10,800 lb on the hybrid, Ford requires the Tow/Haul Package and Max Tow Axle and states the warranty may be voided without them.

Chevrolet’s two documents disagree. For the Double Cab 2WD Duramax with Max Trailering and 20-inch wheels, the 2026 Trailering Guide lists GCWR 19,000 lb; the separate 2026 Silverado 1500 Max Trailering sheet lists 19,100 lb. The tow figure is 13,300 lb in both. The label on the truck governs.

Where to check the real number on the truck you’re buying

Each maker puts the answer in a different place, and none of them is the brochure.

• Ford: the Safety Compliance Certification Label, on the left front door lock facing or the door latch post pillar. The two-digit code below the bar code gives the axle ratio — 19 or L9 is 3.55, L6 is 3.73. The hitch receiver carries its own capacity label.
• Chevrolet: the Trailering Information Label on the driver-side door jamb, which carries GVWR, GCWR, rear GAWR, maximum payload, maximum tongue weight and curb weight together.
• Ram: the door-jamb payload sticker and the window sticker. Confirm the 3.92 axle and the Trailer-Tow Group, since the published chart covers Tradesman.

Read all three before you sign anything.

F-150 vs Silverado vs Ram towing: common questions

Before you sign

The three figures that started this comparison describe three trucks nobody cross-shops side by side. Set them to the same cab and drivetrain and the spread narrows to about 1,800 lb, with payload and tongue weight arriving before any of them.

Read the label on the specific truck, not the badge. If it disagrees with this page, it wins.
